Convergence in 𝘩

Go back to the Contents page.

---

Press Show to reveal the code chunks.

---

Let us set some global options for all code chunks in this document.

# Create a clipboard button
source(here::here("clipboard.R")); clipboard

# Set seed for reproducibility
set.seed(1982)
# Set global options for all code chunks
knitr::opts_chunk$set(
  # Disable messages printed by R code chunks
  message = FALSE,
  # Disable warnings printed by R code chunks
  warning = FALSE,
  # Show R code within code chunks in output
  echo = TRUE,
  # Include both R code and its results in output
  include = TRUE,
  # Evaluate R code chunks
  eval = TRUE,
  # Enable caching of R code chunks for faster rendering
  cache = FALSE,
  # Align figures in the center of the output
  fig.align = "center",
  # Enable retina display for high-resolution figures
  retina = 2,
  # Show errors in the output instead of stopping rendering
  error = TRUE,
  # Do not collapse code and output into a single block
  collapse = FALSE
)
# Start the figure counter
fig_count <- 0
# Define the captioner function
captioner <- function(caption) {
  fig_count <<- fig_count + 1
  paste0("Figure ", fig_count, ": ", caption)
}

To observe convergence in \(h\), we calibrate \(\tau\) and \(m\) to \(h\) as \(\tau \sim h^\alpha\) and \(m \sim \lceil\log_e^2(h)/(\pi^2(1-\alpha/2))\rceil\). This ensures that the total convergence rate with respect to the mesh size \(h\) is of order \(\alpha\), i.e., \(\|u-U_{h,m}^\tau\|_{L_2((0,T);L_2(\Gamma))} \leq C_hh^\alpha\). This can be verified by estimating the slope \(S_h\) in the regression \(\log_{10} E = S_h\log_{10} h+\log_{10} C_h\), where we expect \(S_h\sim\alpha\).

# remotes::install_github("davidbolin/rspde", ref = "devel")
# remotes::install_github("davidbolin/metricgraph", ref = "devel")
library(rSPDE)
library(MetricGraph)
library(grateful)

library(ggplot2)
library(reshape2)
library(plotly)

capture.output(
  knitr::purl(here::here("functionality.Rmd"), output = here::here("functionality.R")),
  file = here::here("purl_log.txt")
)
source(here::here("functionality.R"))

# Parameters
T_final <- 2
kappa <- 4
N_finite = 4 # choose even
adjusted_N_finite <- N_finite + N_finite/2 + 1
# Coefficients for u_0 and f
coeff_U_0 <- 50*(1:adjusted_N_finite)^-1
coeff_U_0[-5] <- 0
coeff_FF <- rep(0, adjusted_N_finite)
coeff_FF[7] <- 10

AAA = 1
OMEGA = pi

# Time step and mesh size
POWERS <- seq(14, 9, by = -1)

time_steps <- 0.1 * 2^-POWERS
h_vector <- time_steps^(1/2)

# Overkill parameters
overkill_time_step <- 0.1 * 2^-14
overkill_h <- (0.1 * 2^-14)^(1/2)

# Finest time and space mesh
overkill_time_seq <- seq(0, T_final, length.out = ((T_final - 0) / overkill_time_step + 1))
overkill_graph <- gets.graph.tadpole(h = overkill_h)

# Compute the weights on the finest mesh
overkill_graph$compute_fem() # This is needed to compute the weights
overkill_weights <- overkill_graph$mesh$weights

m_values <- c()
alpha_vector <- seq(1, 1.8, by = 0.2)
# Create a matrix to store the errors

errors_projected <- matrix(NA, nrow = length(h_vector), ncol = length(alpha_vector))
for (j in 1:length(alpha_vector)) {
  alpha <- alpha_vector[j] # from 0.5 to 2
  beta <- alpha / 2

  # Compute the eigenvalues and eigenfunctions on the finest mesh
  overkill_eigen_params <- gets.eigen.params(N_finite = N_finite, kappa = kappa, alpha = alpha, graph = overkill_graph)
  EIGENVAL_ALPHA <- overkill_eigen_params$EIGENVAL_ALPHA # Eigenvalues (they are independent of the meshes)
  overkill_EIGENFUN <- overkill_eigen_params$EIGENFUN # Eigenfunctions on the finest mesh

  # Compute the true solution on the finest mesh
  overkill_U_true <- overkill_EIGENFUN %*%
    outer(1:length(coeff_U_0),
          1:length(overkill_time_seq),
          function(i, j) (coeff_U_0[i] + coeff_FF[i] * G_sin(t = overkill_time_seq[j], A = AAA, lambda_j_alpha_half = EIGENVAL_ALPHA[i], omega = OMEGA)) * exp(-EIGENVAL_ALPHA[i] * overkill_time_seq[j]))

  for (i in 1:length(h_vector)) {
    h <- h_vector[i]
    time_step <- h^alpha
    m <- min(4, ceiling((log(h))^2 / (pi^2 * (1 - alpha / 2)))) # min(4, ceiling(25 * (log(h))^2 / (16 * pi^2 * (1 - alpha / 2))))
    m_values <- c(m_values, m)
    graph <- gets.graph.tadpole(h = h)
    graph$compute_fem()
    G <- graph$mesh$G
    C <- graph$mesh$C
    L <- kappa^2*C + G
    eigen_params <- gets.eigen.params(N_finite = N_finite, kappa = kappa, alpha = alpha, graph = graph)
    EIGENFUN <- eigen_params$EIGENFUN
    U_0 <- EIGENFUN %*% coeff_U_0 # Compute U_0 on the current mesh
    Psi <- graph$fem_basis(overkill_graph$get_mesh_locations())

    time_seq <- seq(0, T_final, length.out = ((T_final - 0) / time_step + 1))
    my_op_frac <- my.fractional.operators.frac(L, beta, C, scale.factor = kappa^2, m = m, time_step)
    INT_BASIS_EIGEN <- t(overkill_EIGENFUN) %*% overkill_graph$mesh$C %*% Psi
    # Compute matrix F with columns F^k
    FF_approx <- t(INT_BASIS_EIGEN) %*%
      outer(1:length(coeff_FF),
            1:length(time_seq),
        function(i, j) coeff_FF[i] * g_sin(r = time_seq[j], A = AAA, omega = OMEGA))

    U_approx <- matrix(NA, nrow = nrow(C), ncol = length(time_seq))
    U_approx[, 1] <- U_0
    for (k in 1:(length(time_seq) - 1)) {
      U_approx[, k + 1] <- as.matrix(my.solver.frac(my_op_frac, my_op_frac$C %*% U_approx[, k] + time_step * FF_approx[, k + 1]))
    }

    projected_U_approx <- Psi %*% U_approx
    projected_U_piecewise <- construct_piecewise_projection(projected_U_approx, time_seq, overkill_time_seq)
    errors_projected[i,j] <- sqrt(as.double(t(overkill_weights) %*% (overkill_U_true - projected_U_piecewise)^2 %*% rep(overkill_time_step, length(overkill_time_seq))))
    print(paste("m =", m, ", alpha =", alpha, ", h =", h, ", time_step =", time_step))
  }
}
save(errors_projected, file = here::here("data_files/errors_projected_h.RData"))

# Load the errors_projected data
load(here::here("data_files/errors_projected_h.RData"))

observed_rates <- numeric(length(alpha_vector))
for (u in 1:length(alpha_vector)) {
  observed_rates[u] <- coef(lm(log10(errors_projected[, u]) ~ log10(h_vector)))[2]
}

theoretical_rates <- alpha_vector


p_h <- error.convergence.plotter(x_axis_vector = h_vector,
                                 alpha_vector,
                                 errors_projected,
                                 theoretical_rates,
                                 observed_rates,
                                 line_equation_fun = loglog_line_equation,
                                 fig_title = expression("Convergence in " * italic(h)),
                                 x_axis_label = expression(italic(h)))
p_h

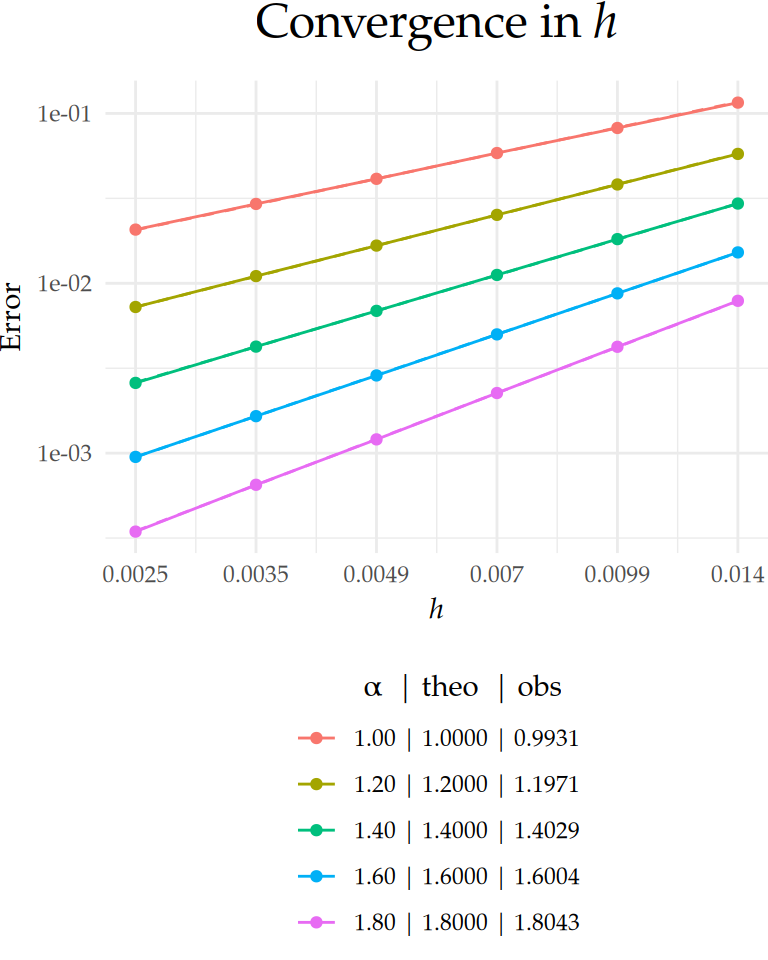

Figure 1: Comparison of theoretical and observed convergence behavior for the \(L_2((0,T);L_2(\Gamma))\)-error with respect to \(h\) on a \(\text{log}_{10}\)–\(\text{log}_{10}\) scale. Dashed lines indicate the theoretical rates, and solid lines represent the observed error curves. The legend below each plot shows the value of \(\alpha\) along with the corresponding theoretical (‘theo’), and observed (‘obs’) rates for each case.

ggsave(here::here("data_files/conv_rates_h.png"), width = 4, height = 5, plot = p_h, dpi = 300)
save(p_h, file = here::here("data_files/p_h.RData"))
