Using the KL expansion to approximate the covariance matrix for the interval and circle cases

Go back to the About page.

Go back to the Approximation page

Let us set some global options for all code chunks in this document.

# Set seed for reproducibility
set.seed(1982)
# Set global options for all code chunks
knitr::opts_chunk$set(
  # Disable messages printed by R code chunks
  message = FALSE,
  # Disable warnings printed by R code chunks
  warning = FALSE,
  # Show R code within code chunks in output
  echo = TRUE,
  # Include both R code and its results in output
  include = TRUE,
  # Evaluate R code chunks
  eval = TRUE,
  # Enable caching of R code chunks for faster rendering
  cache = FALSE,
  # Align figures in the center of the output
  fig.align = "center",
  # Enable retina display for high-resolution figures
  retina = 2,
  # Show errors in the output instead of stopping rendering
  error = TRUE,
  # Do not collapse code and output into a single block
  collapse = FALSE
)
# Start the figure counter
fig_count <- 0
# Define the captioner function
captioner <- function(caption) {
  fig_count <<- fig_count + 1
  paste0("Figure ", fig_count, ": ", caption)
}

Import libraries

library(MetricGraph)
library(Matrix)
library(rSPDE)

library(dplyr)
library(tidyverse)
library(plotly)

library(grateful) # Cite all loaded packages

Interval graph

# function 1
gets_graph_interval <- function(n){
  edge <- rbind(c(0,0),c(1,0))
  edges = list(edge)
  graph <- metric_graph$new(edges = edges)
  graph$build_mesh(n = n)
  return(graph)
}


# true eigenfunctions
interval.eig <- function(k,graph){
  x <- c(0,graph$get_edge_lengths()[1]*graph$mesh$PtE[,2],1)
  if(k==0){
    f.0 <- rep(1,length(x))
    f1 = c(f.0[1],f.0[length(f.0)], f.0[2:(length(f.0)-1)])
    f = list(phi=f1)
  }else{
    f.c <- sqrt(2)*cos(pi*k*x)
    f2 = c(f.c[1],f.c[length(f.c)], f.c[2:(length(f.c)-1)])
    f <- list(psi=f2)
  }
  return(f)
}

# parameters
n = 333
rho = 1
m = 4
nu = 0.6
sigma = 1
n.overkill = 1000
graph = gets_graph_interval(n = n)

kappa = sqrt(8*nu)/rho
tau = sqrt(gamma(nu) / (sigma^2 * kappa^(2*nu) * (4*pi)^(1/2) * gamma(nu + 1/2)))  #sigma = 1, d = 1
alpha = nu + 1/2

# getting true covariance matrix
true_cov_mat <- matrix(0,nrow = dim(graph$mesh$V)[1],ncol = dim(graph$mesh$V)[1])
for(i in 0:n.overkill){
  if(i==0){
    phi <- interval.eig(i,graph)$phi
    true_cov_mat <- true_cov_mat + (1/(kappa^2 + (i*pi)^2)^(alpha))*phi%*%t(phi)
  }else{
    psi <- interval.eig(i,graph)$psi
    true_cov_mat <- true_cov_mat + (1/(kappa^2 + (i*pi)^2)^(alpha))*psi%*%t(psi)
  }

}
true_cov_mat <- true_cov_mat/tau^2
true_cov_mat_reordered <- true_cov_mat[c(1,3:(n+2),2), c(1,3:(n+2),2)] # needs reorder


# getting approximate matrix
op <- matern.operators(alpha = alpha, kappa = kappa, tau = tau,
                       m = m, graph = graph)
appr_cov_mat = op$covariance_mesh()
appr_cov_mat_reordered <- appr_cov_mat[c(1,3:(n+2),2), c(1,3:(n+2),2)] # needs reorder

# computing the errors
L_inf_error = max(abs(true_cov_mat - appr_cov_mat))
L_2_error = sqrt(as.double(t(graph$mesh$weights)%*%(true_cov_mat - appr_cov_mat)^2%*%graph$mesh$weights))
print(L_inf_error)
## [1] 0.0009502132
print(L_2_error)
## [1] 0.0001074629

# plot just for confirmation
plot(true_cov_mat_reordered[round(n/2)+1,], type="l", col = "blue", lty = 2) #true
lines(appr_cov_mat_reordered[round(n/2)+1,], type = "l", col = "red", lty = 3) #approx
legend("topright", legend = c("true", "approx"), col = c("blue", "red"), lty = 1)

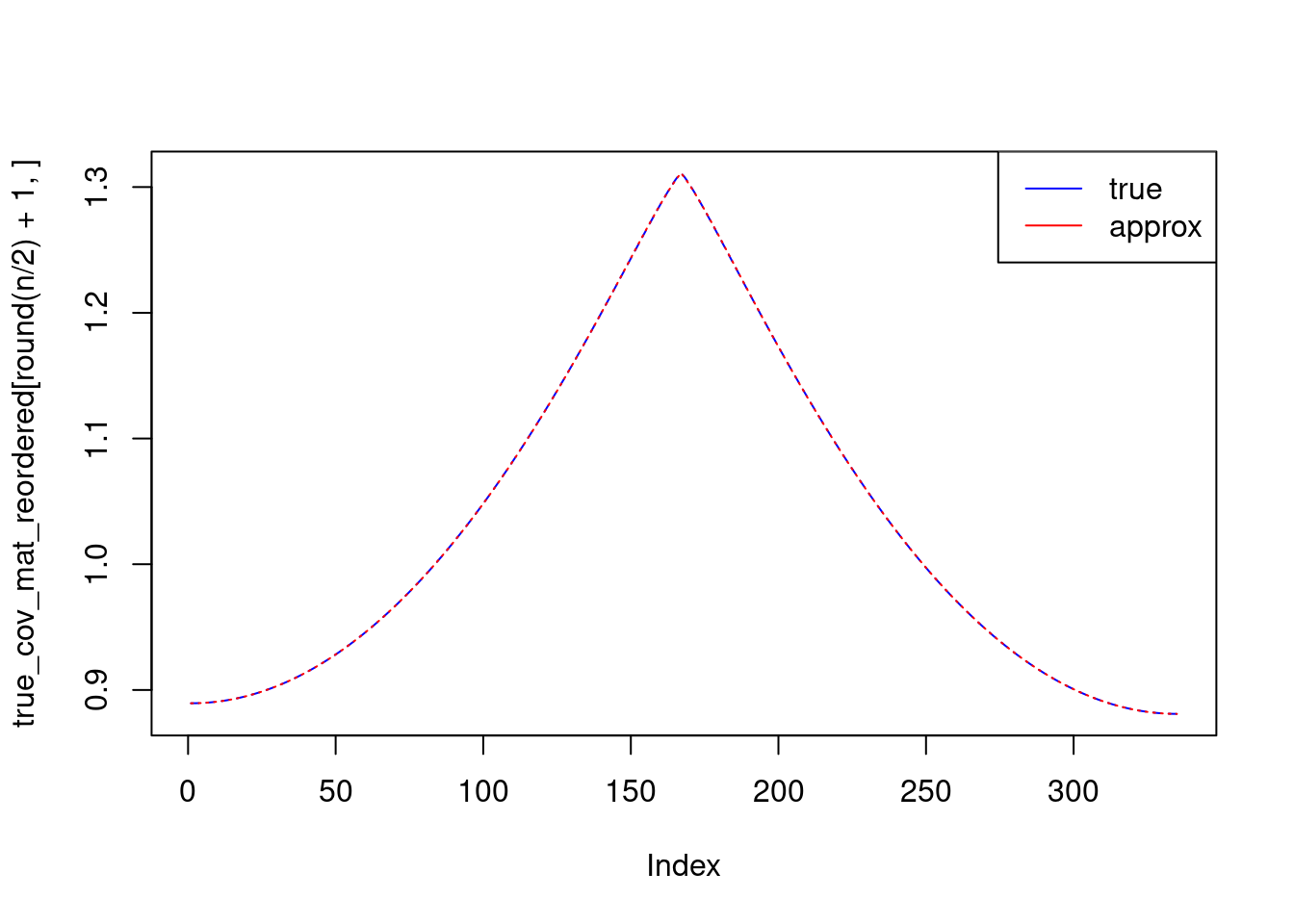

Figure 1: True and approximate covariance matrix for the interval graph.

point  <- c(1, 0.5)
c_cov <- op$cov_function_mesh(matrix(point,1,2))
loc <- graph$coordinates(PtE = point)
m1 <- which.min((graph$mesh$V[,1]-loc[1])^2 + (graph$mesh$V[,2]-loc[2])^2)
p <- graph$plot_function(true_cov_mat[m1,], plotly = TRUE, line_width = 3)
graph$plot_function(c_cov,p=p, line_color = "red", plotly = TRUE,line_width = 3)

Figure 2: True and approximate covariance matrix for the interval graph.

Circle graph

r = 1/(pi)
theta <- seq(from=-pi,to=pi,length.out = 100)
edge <- cbind(1+r+r*cos(theta),r*sin(theta))
edges = list(edge)

n = 666

graph <- metric_graph$new(edges = edges)
graph$build_mesh(n = n)

#true eigenfunctions
circle.eig <- function(k,graph,L){
  x <- c(0,graph$get_edge_lengths()[1]*graph$mesh$PtE[,2],2)
  if(k==0){
    f.0 <- rep(1,length(x))
    f.0 = f.0[-length(f.0)]
    f = list(phi=f.0/sqrt(L))
  }else{
    f.c <- sqrt(2/L)*cos(pi*k*x/L)
    f.c = f.c[-length(f.c)]
    f.s <- sqrt(2/L)*sin(pi*k*x/L)
    f.s = f.s[-length(f.s)]
    f <- list(phi=f.c,psi=f.s)
  }
  return(f)
}

rho = 1
m = 4
nu = 0.6
sigma = 1
kappa = sqrt(8*nu)/rho
tau = sqrt(gamma(nu) / (sigma^2 * kappa^(2*nu) * (4*pi)^(1/2) * gamma(nu + 1/2)))  #sigma = 1, d = 1
alpha = nu + 1/2

L = 1
#check KL expansion
true_cov_mat <- matrix(0,nrow = dim(graph$mesh$V)[1],ncol = dim(graph$mesh$V)[1])
for(i in 0:1000){
  if(i==0){
    phi <- circle.eig(i,graph,L)$phi
    true_cov_mat <- true_cov_mat + (1/(kappa^2 + (i*pi/L)^2)^(alpha))*phi%*%t(phi)
  }else{
    eigen <- circle.eig(i,graph,L)
    psi <- eigen$psi
    phi <- eigen$phi
    true_cov_mat <- true_cov_mat + (1/(kappa^2 + (i*pi/L)^2)^(alpha))*psi%*%t(psi) +
                           (1/(kappa^2 + (i*pi/L)^2)^(alpha))*phi%*%t(phi)
  }

}
true_cov_mat <- true_cov_mat/tau^2/2

# getting approximate matrix
op <- matern.operators(alpha = alpha, kappa = kappa, tau = tau,
                       m = m, graph = graph)
appr_cov_mat = op$covariance_mesh()

# computing the errors
L_inf_error = max(abs(true_cov_mat - appr_cov_mat))
L_2_error = sqrt(as.double(t(graph$mesh$weights)%*%(true_cov_mat - appr_cov_mat)^2%*%graph$mesh$weights))
print(L_inf_error)
## [1] 0.0008314198
print(L_2_error)
## [1] 0.0002983357

#plot just for confirmation
plot(true_cov_mat[round(n/2),], type="l", col = "blue", lty = 2) #true
lines(appr_cov_mat[round(n/2),], type = "l", col = "red", lty = 3) #approx
legend("topright", legend = c("true", "approx"), col = c("blue", "red"), lty = 1)

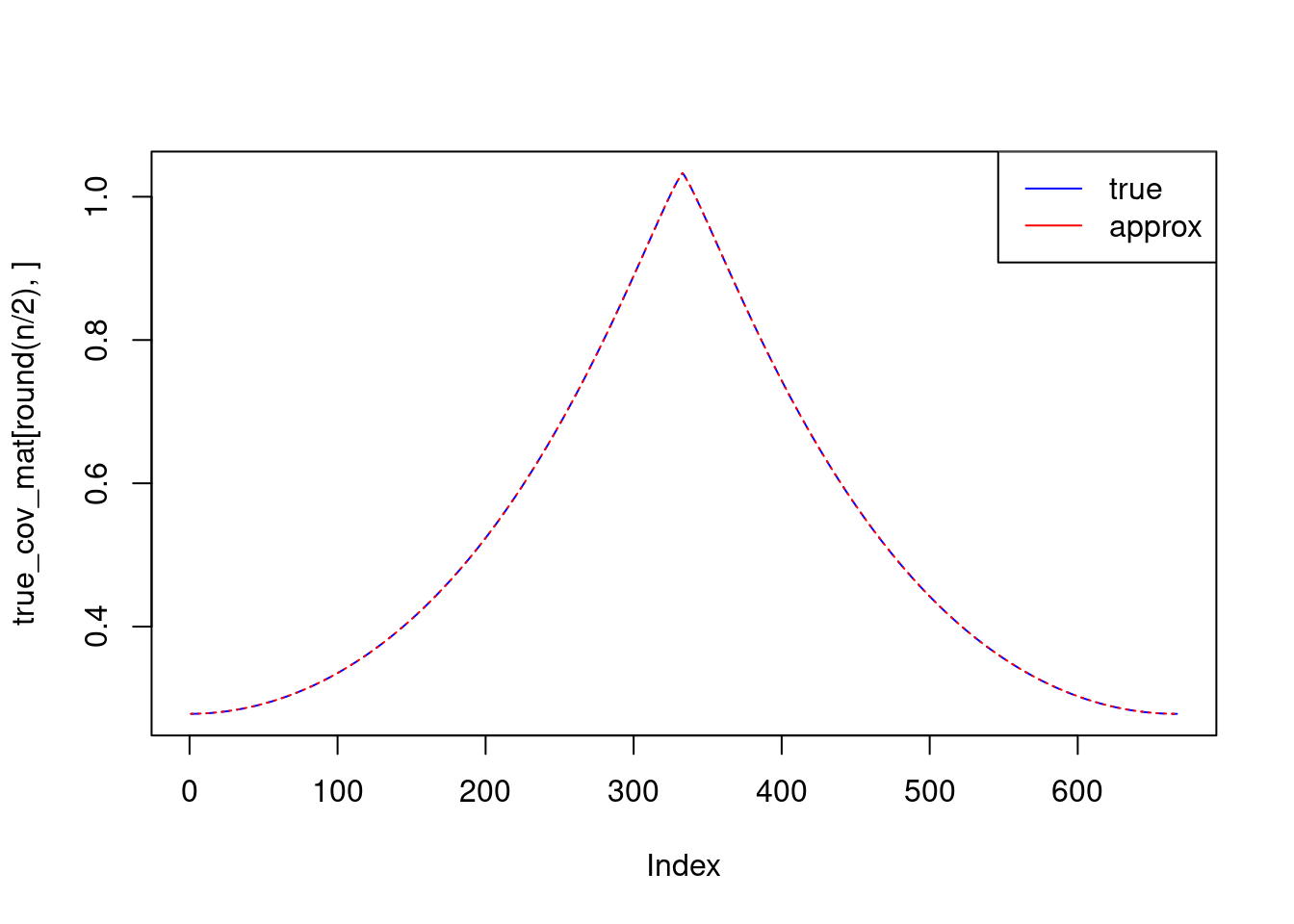

Figure 3: True and approximate covariance matrix for the circle graph.

point  <- c(1,0)
c_cov <- op$cov_function_mesh(matrix(point,1,2))
loc <- graph$coordinates(PtE = point)
m1 <- which.min((graph$mesh$V[,1]-loc[1])^2 + (graph$mesh$V[,2]-loc[2])^2)
p <- graph$plot_function(true_cov_mat[m1,], plotly = TRUE, line_width = 3)
graph$plot_function(c_cov,p=p, line_color = "red", plotly = TRUE,line_width = 3)

Figure 4: True and approximate covariance matrix for the circle graph.
